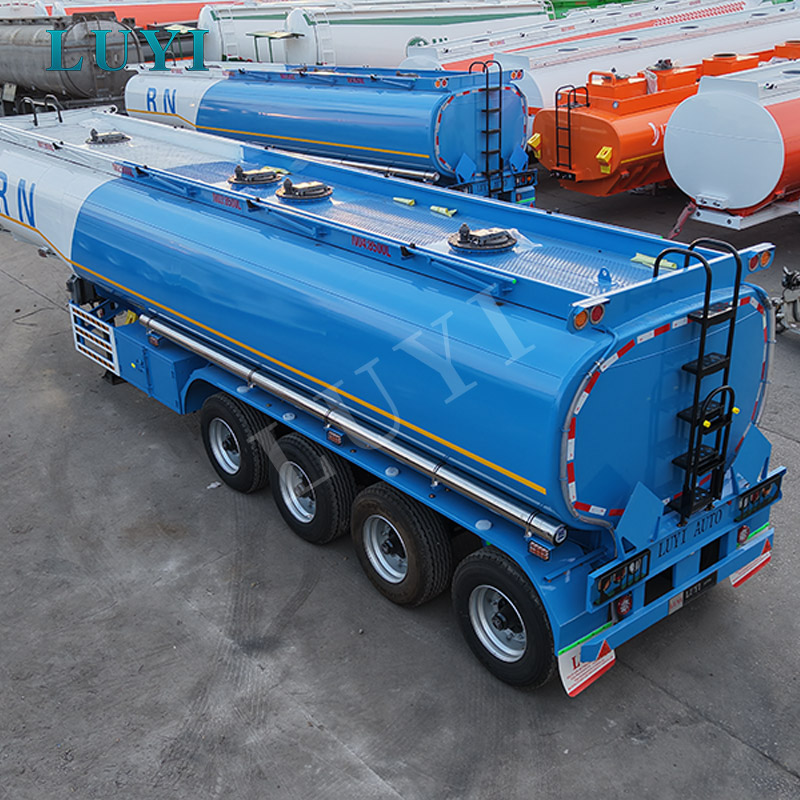

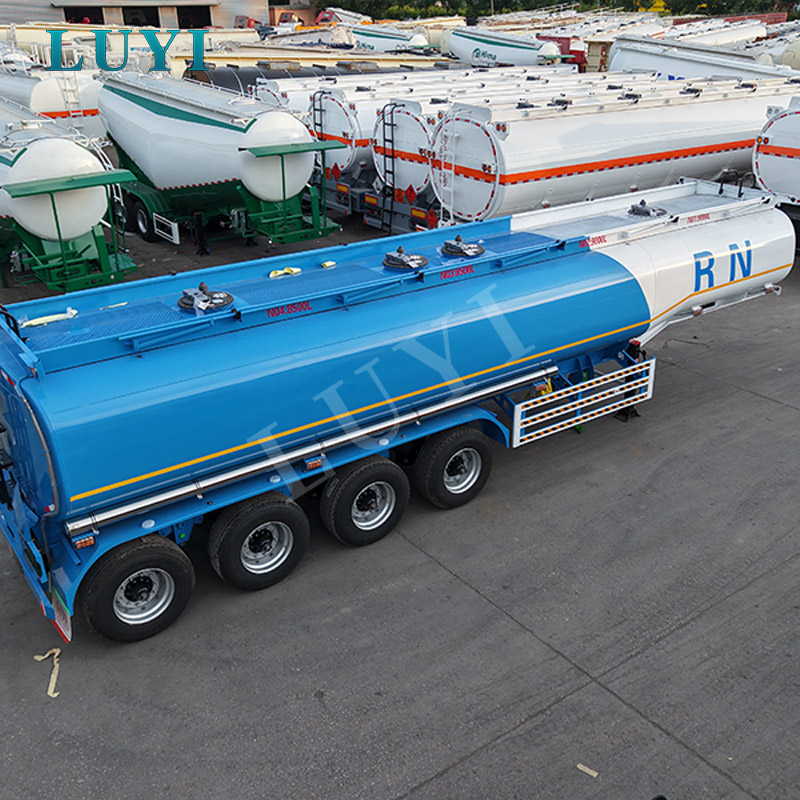

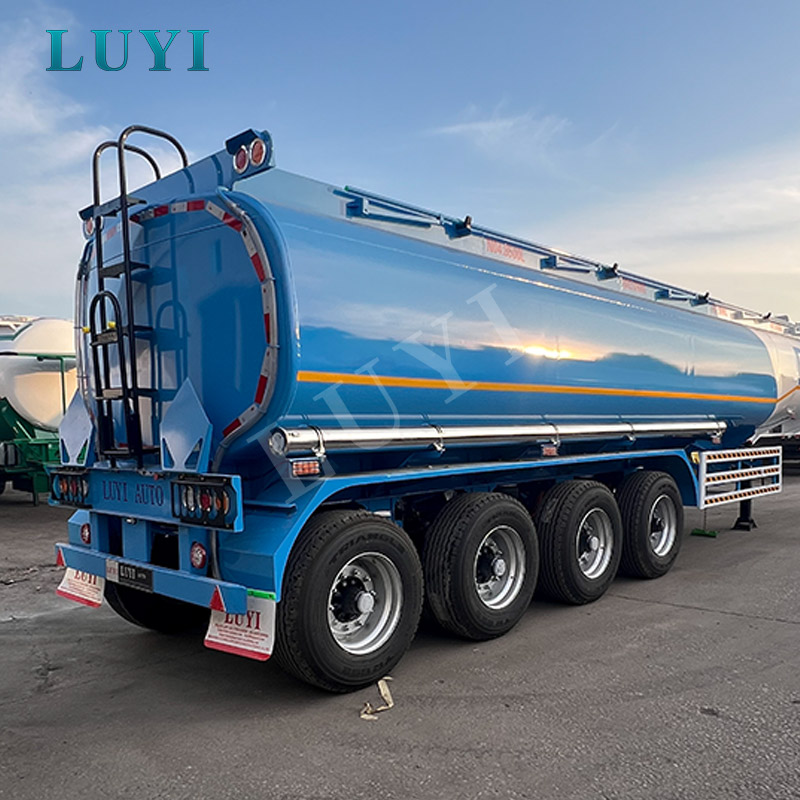

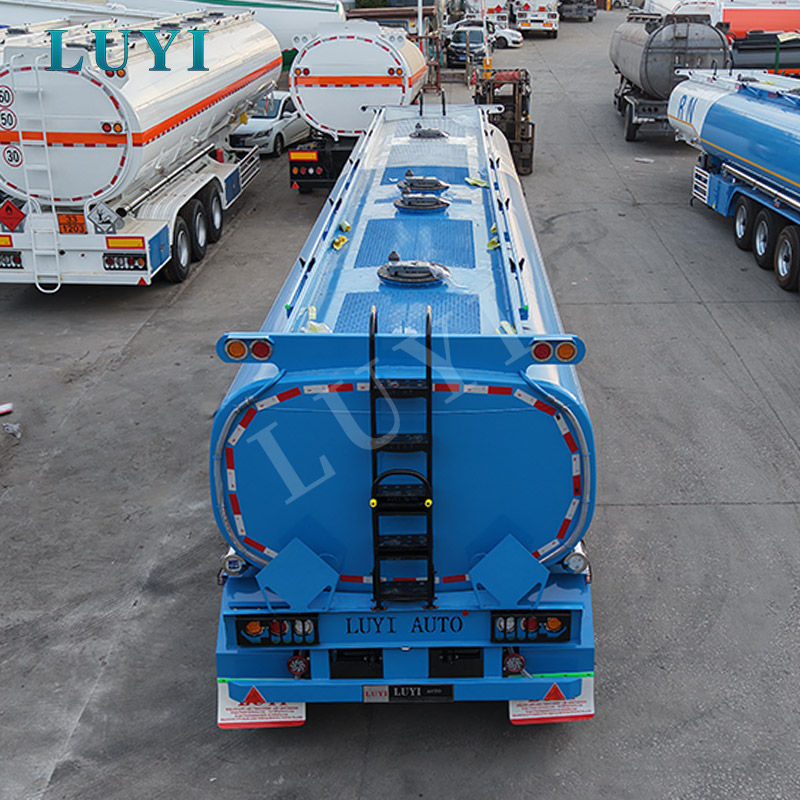

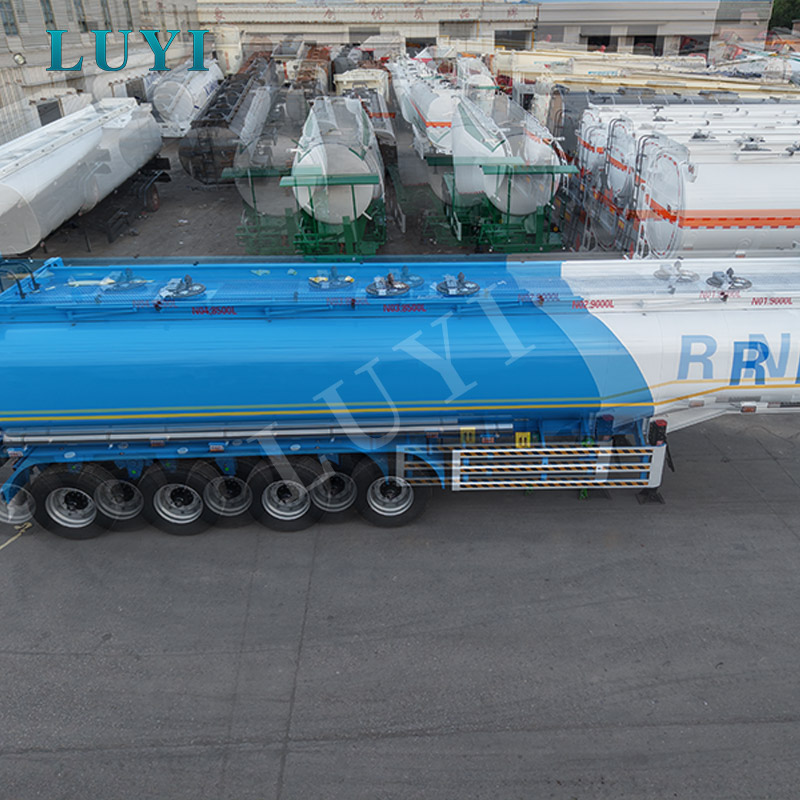

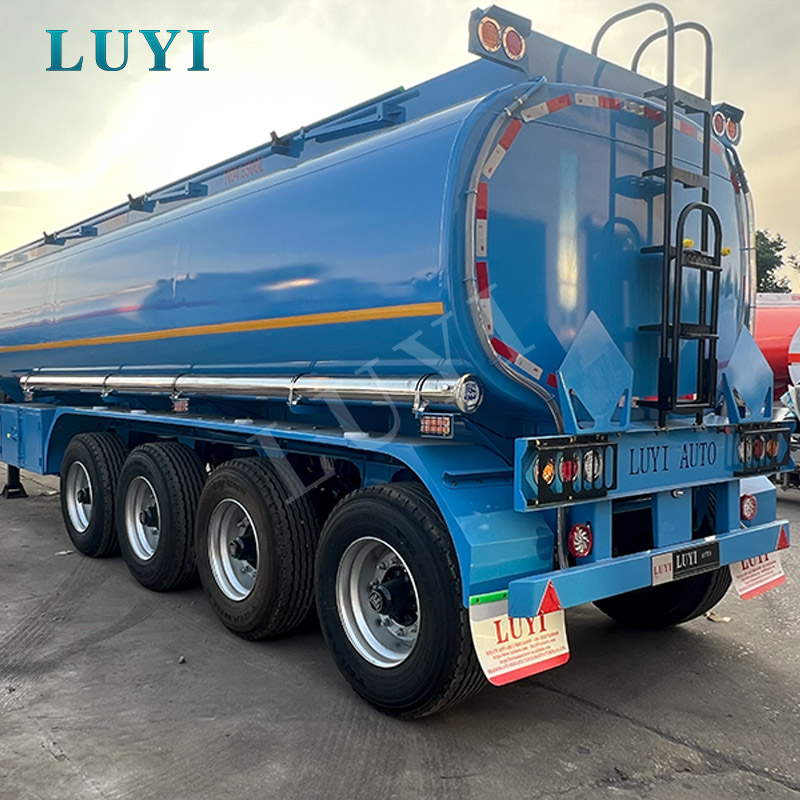

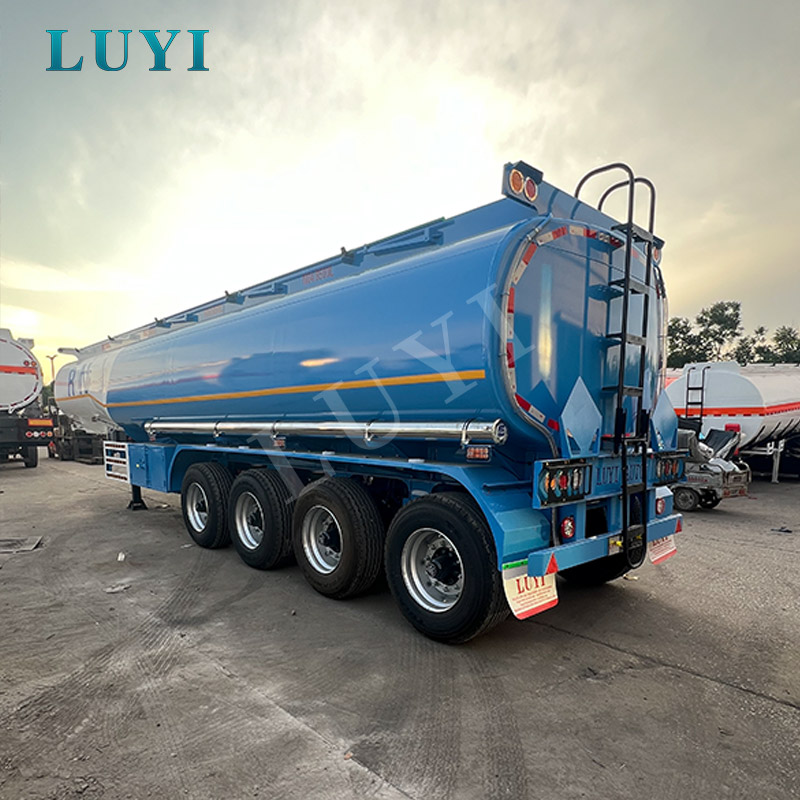

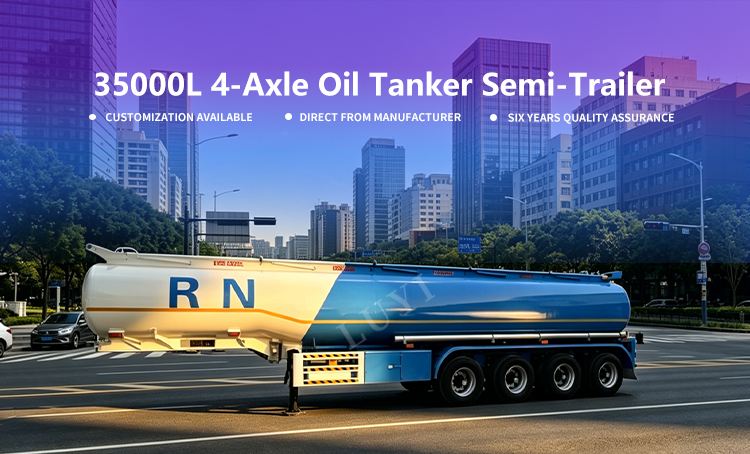

The LUYI 35000-liter four-axle carbon steel oil tank semi-trailer is a specialized oil tank semi-trailer for long-distance diesel and gasoline storage and transportation. The front axle can be equipped with an air suspension system and 4 independent sealed compartments, which are the distinctive features of this oil tank semi-trailer. The vehicle is equipped with 4 heavy-duty 13-ton axles. The front axle is designed with a lift function for empty loading to reduce tire wear. The 35000L capacity is divided into 4 independent compartments, allowing different types of oil to be transported separately. The tank body is made of Q355B carbon steel material. Each compartment undergoes a 35KPa water pressure airtight test. It is equipped with a WABCO dual-chamber braking component to solve the industry problems of high tire wear during overseas empty vehicle travel, oil contamination during mixed loading, and leakage of the tank weld seams.

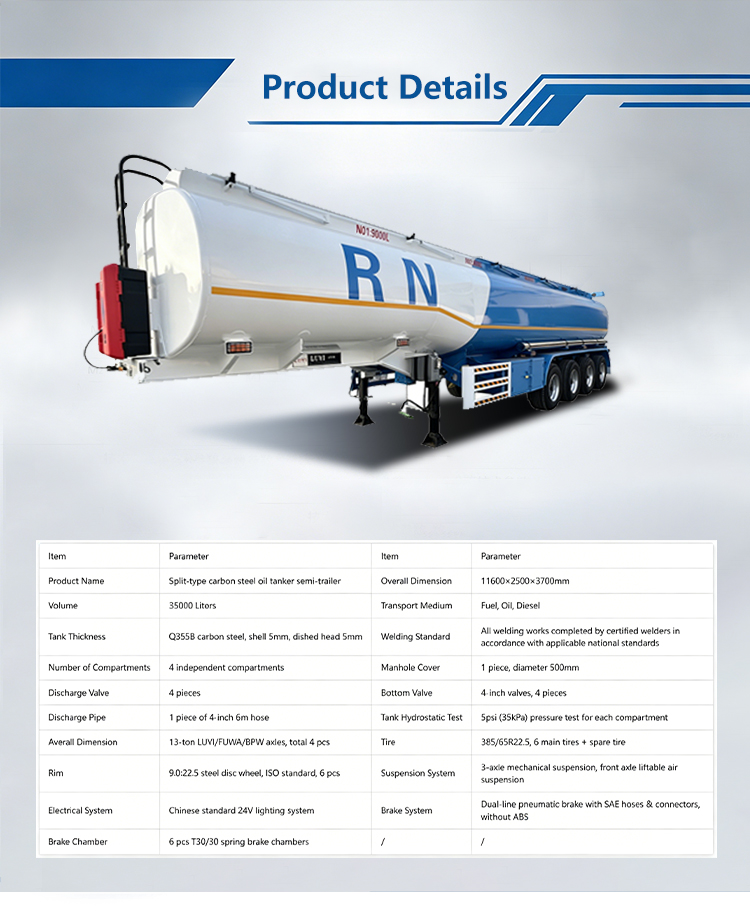

Technical Specifications

Overall vehicle dimensions: 11600mm × 2500mm × 3700mm, total volume 35000L;
Tank material: cylinder 5mm Q355B carbon steel plate, the dome is thickened to 5mm, fully certified welders perform fully automatic submerged arc welding; 4 completely independent oil storage tanks;
Travel system: 4 13-ton LUYIBPW heavy-duty axle, the first axle is a liftable air suspension, the last three axles adopt mechanical suspension; tire specification 385/65R22.5;

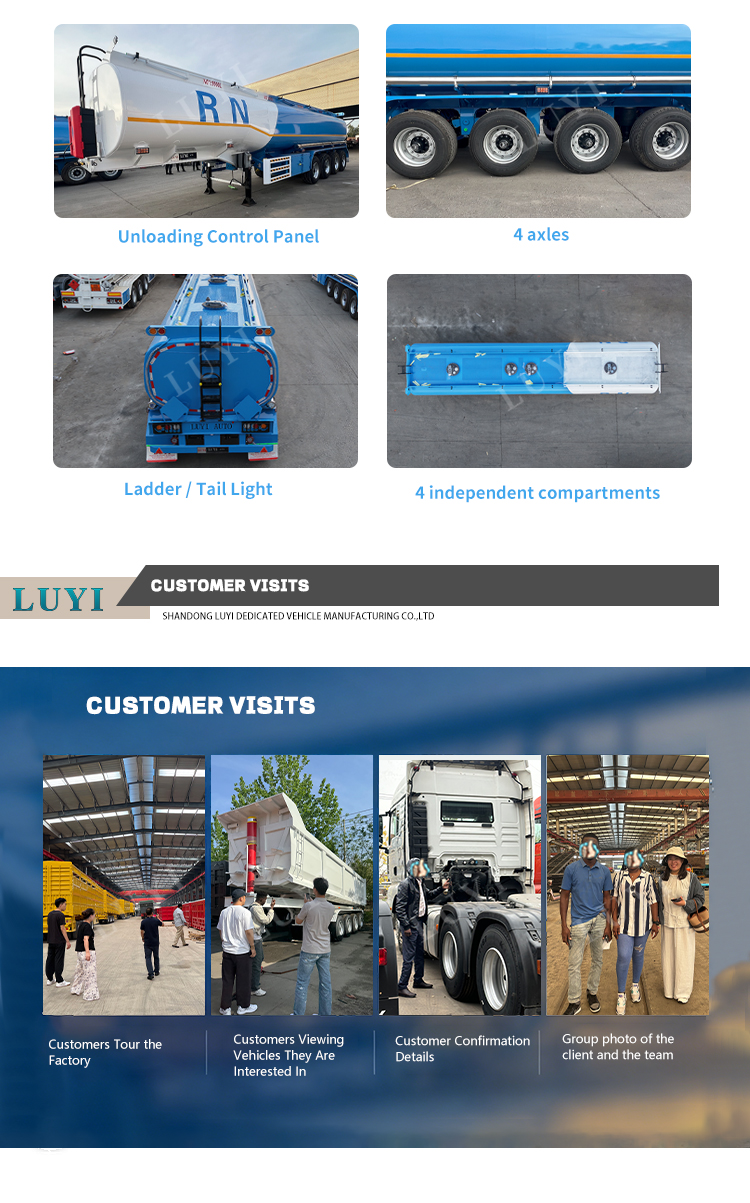

Pipeline discharge: 4 4-inch bottom emergency shut-off valves, equipped with 4-inch 6-meter long oil discharge hoses; 500mm diameter explosion-proof manhole cover;
Brake configuration: 6 T30 spring brake chambers, using dual-loop pneumatic braking system with SAE standard connectors;
Pressure resistance test: Each storage compartment conducts a 35KPa water pressure airtight test separately; the entire vehicle has a 24V explosion-proof lighting system, equipped with static grounding straps and tail protection railings.

Qualification certifications

Issued by the Ministry of Industry and Information Technology, the whole vehicle production announcement for hazardous chemical semi-trailers, having the export production license for oil storage and transportation tanker trucks;
Full set of AAA-level certificates: AAA trustworthy export supplier, AAA quality trustworthy enterprise, exemplary unit of honest operation;
Customs export filing qualifications, able to provide complete English customs declaration materials such as origin certificates, vehicle consistency certificates, and hazardous chemicals compliance certificates;

Customer feedback

The Nigerian fuel trading company purchased 12 oil tank semi-trailers and after one year of use, feedback indicated that they could significantly enhance the performance of the front axle and greatly reduce tire wear of empty vehicles. The four storage compartments were separately filled with different types of fuel, resulting in a notable increase in driving efficiency. There were no leakage issues with the tank bodies. The 6-year warranty made the maintenance of the fleet more convenient in the future. The company plans to continue purchasing in the future.

Packaging Logistics

Protection Measures: The entire vehicle is wrapped with thick waterproof PE tarpaulin; the manhole cover, oil outlet valve, braking pipeline, tires, and the edges of the tank body are individually wrapped with foam to resist salt spray corrosion during maritime transportation during lifting and installation；
Sea Transport： Rolling stock ships are preferred for whole vehicle lifting and transportation at sea. Port staff securely tie and fix the trailers， and our dedicated personnel follow up on the customs clearance process； land transportation can be adopted in the Central Asia region；
Documentation： Paper and electronic versions of English test reports and qualification documents are delivered together to ensure the smooth customs clearance and successful entry of the oil tank semi-trailers into fuel transportation.

Enterprise Advantages

Shandong luyi dedicated vehicle manufacturing co., ltd. It is a regular commercial trailer manufacturing company approved by the Ministry of Industry and Information Technology. With over 20 years of experience in trailer research and production, we have our own modern production lines including CNC plate rolling, robot welding, and anti-corrosion spraying. We offer factory direct sales without the middleman price difference. Our oil tank semi-trailers, flatbeds, and dump trailers have been exported to more than 80 countries such as Tanzania, Zambia, Uganda, and Vietnam for a long time. Our foreign trade personnel are familiar with overseas hazardous material transportation regulations. Overseas customers are welcome to visit and inspect our factory, and they can watch the water pressure test of the tank body on-site. All oil tank semi-trailers support OEM customization. They undergo multiple layers of inspections before leaving the factory, and are guaranteed for 6 years with 24/7 technical support to provide long-term protection for customers.

FAQ

Q: Can the number of compartments in this oil tank semi-trailer be modified?

A: The standard configuration is a 4-compartment structure. It can be adjusted to 2 compartments or 3 compartments as needed, and the single compartment volume can be changed to suit your transportation plan.

Q: Does the 6-year warranty cover the axle and tank body? Which accessories are not covered by the warranty?

A: The tank body cylinder, main crossbeam, and 4 heavy-duty axles are covered by the 6-year original factory warranty; tires, sealing gaskets, brake chambers, and hoses are consumables and are not covered by the warranty. We can provide export spare parts as a supplement.

Q: Can the front lifting air suspension be replaced with a mechanical suspension?

A: Yes, according to the regulations of the customer's country, choose either the full mechanical suspension or the front lifting air suspension option.

Q: Can the tank body be painted with our company's logo and exclusive color?

A: The overall anti-corrosion paint color can be freely selected. The customer's brand logo can be sprayed on both sides of the tank body for free.

Q: Besides gasoline and diesel, can the tank body transport chemical raw materials?

A: Carbon steel tank bodies are only suitable for ordinary fuel; for corrosive chemical media, we can upgrade to stainless steel tank bodies and add a thicker anti-corrosion layer.
